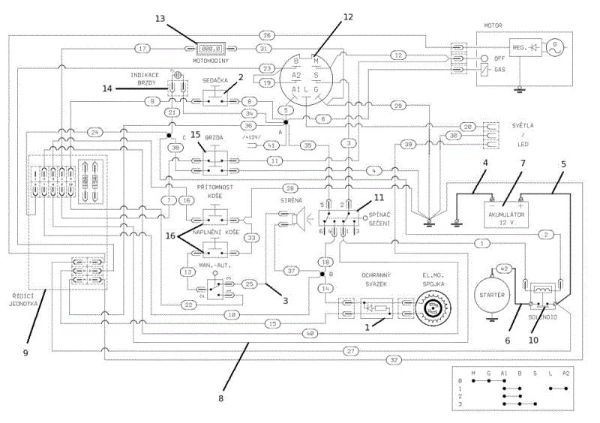

Electric diagram OM 92S/13H Cat.2014 Garden tractor

Electric diagram OM 92S/13H Cat.2014 Garden tractor

Garden tractors OM 92S/13H Cat.2014 Garden tractor Electric diagram Brand Oleo-Mac
Fabricante: OLEOMAC
In case of spare parts order of OM 92S/13H Cat.2014 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
In case of spare parts order of OM 92S/13H Cat.2014 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
*
*
*

1 Diode

Spare Part Diode Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25.24 incl impuestos

2 Seat switch

Spare Part Seat switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€38.98 incl impuestos

3 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€12.35 incl impuestos

4 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€11.37 incl impuestos

5 Complete cable

Spare Part Complete cable Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€26.99 incl impuestos

6 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€15.92 incl impuestos

7 Battery

Spare Part Battery Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€331.55 incl impuestos

8 Cable

Spare Part Cable Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€449.86 incl impuestos

9 Electric diagram

Spare Part Electric diagram Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€486.99 incl impuestos

10 Solenoid

Spare Part Solenoid Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€56.72 incl impuestos

11 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€65.73 incl impuestos

12 Switch box

Spare Part Switch box Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€71.57 incl impuestos

13 Counter

Spare Part Counter Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€204.55 incl impuestos

14 Warning light

Spare Part Warning light Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€36.43 incl impuestos

15 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€67.59 incl impuestos

16 Switch grassbag

Spare Part Switch grassbag Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€55.76 incl impuestos
